VIDEO MATRIX
- Collegamenti I/O HDMI
- Funzionamento del sistema tramite controller seriale RS-232 bidirezionale ( adattatore USB fornito di serie) o RJ45
- La gradualizzazione integrata su ciascuna porta di uscita converte le risoluzioni in ingresso nelle risoluzioni originali del display e supporta l'incremento o la riduzione di risoluzioni 1920 x 1200
- Ingressi Uscite Programmabili
- tre modelli disponibili per ogni diversa esigenza
Modello : MT-DM-4
HDMI VIDEO Matrix
Interface: HDMI
Solution(Max): 4/4 (4 HDMI input, 4HDMI output)
Support video wall: 2*2, 2*1, 3*1, 4*1, multi methods supportive, just not exceed max 4 signals
Application: LCD Video wall system
Function: Signal processing

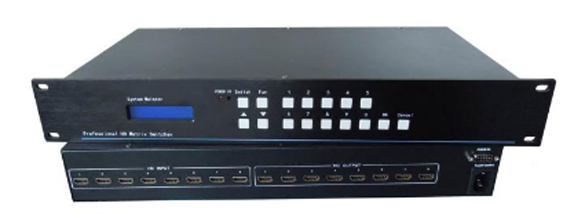

Modello : MT-DM-9
HDMI VIDEO Matrix
Interface: HDMI
Solution(Max): 9/9 (9 HDMI input, 9HDMI output)
Support video wall: 3*3, 1*9, 2*4, 2*2, 2*3,1*8, multi methods supportive, just not exceed max 9 signals
Application: LCD Video wall system
Function: Signal processing
Modello : MT-DM-16
HDMI VIDEO Matrix
Interface: HDMI
Solution(Max): 16/16 (16 HDMI input, 16HDMI output)
Support video wall: multi methods supportive, just not exceed max 16 signals
Application: LCD Video wall system
Function: Signal processing
SPECIFICHE TECNICHE
HD HDMI Matrix
1. Description
HDMI matrix is a matrix switcher for switching HDMI signals freely.
It can process signals with a resolution of up to 1920 * 1200, or 1080P.
It can be cross-switched, also follow and separate audio signals.
It is compatible with HDCP 1.3 and supports EDID.
It control via infrared, RS232 and front panel.
It is widely used in video conference rooms, educational institutions, control rooms, monitoring centers, government agencies and presentation halls.
2. Characteristic
1. Description
HDMI matrix is a matrix switcher for switching HDMI signals freely.
It can process signals with a resolution of up to 1920 * 1200, or 1080P.
It can be cross-switched, also follow and separate audio signals.
It is compatible with HDCP 1.3 and supports EDID.
It control via infrared, RS232 and front panel.
It is widely used in video conference rooms, educational institutions, control rooms, monitoring centers, government agencies and presentation halls.
2. Characteristic
--High reliability intelligence, exquisite technology,
bandwidth up to 6.5G;
--Built-in HDCP, EDID and DDC, support DVI1.0, HDMI 1.3;
--The highest resolution can reach 1080p, 1920 * 1200 @
60Hz, support HDTV;
--Support high color (XV color);
--Support Dolby Digital HD audio, DTS-HD audio signals;
--RS232 interface, can control third-party equipment;
--Infrared remote control, full function control can be
achieved;
--Optional TCP / IP network control function (used with
PTNET);
--Maximum I / O
output,
--Material: rack-mounted aluminum alloy frame;
--Power supply: 100-240V AC, 50 / 60Hz,
